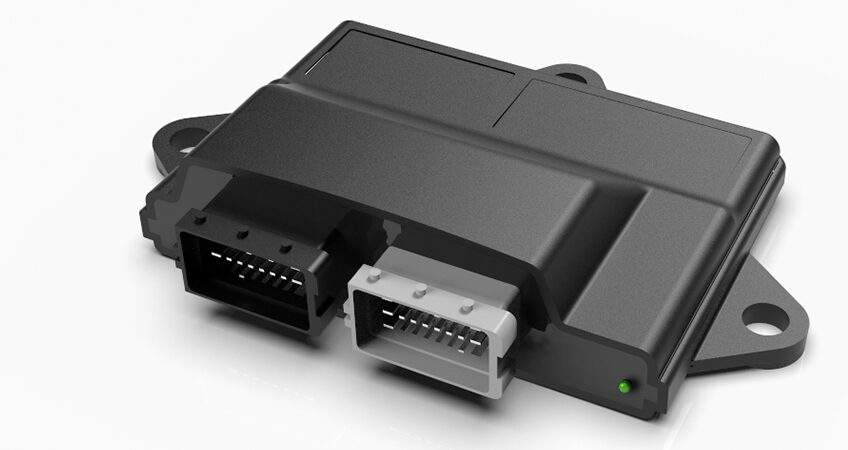

EC-PWM-P12-MPC6-H Microprocessor-based PWM driver for remote control of up to 6 dual-coil proportional solenoid valves

The EC-PWM-P12-MPC6-H is a robust electronic driver for solenoid-operated proportional valves that make use of a last generation microcontroller for handling the PWM proportional solenoids. It has twelve inputs ranging from analog (6) to digital (6). Six PWM closed loop outputs have configurable frequency (17 outputs available in total). The controller accepts input from commonly available analog or SAE J1939 CAN/CANopen operator interface devices (joystick, potentiometer, sensors, etc…). The input signal drives the output current. The green LED signal provides quick status check. ECU fully potted placed inside a rugged nylon enclosure. The EC-PWM-P12-MPC6-H controller can be used in a wide range of applications, including transmission controls, vehicle traction controls, agricultural and forestry machines controls, and harvesting function controls. Moreover, this ECU is available in an enhanced version for applications with high safety requirements: two microcontrollers with independent power supply and watchdog, two CANbus connections, ground detection input.
